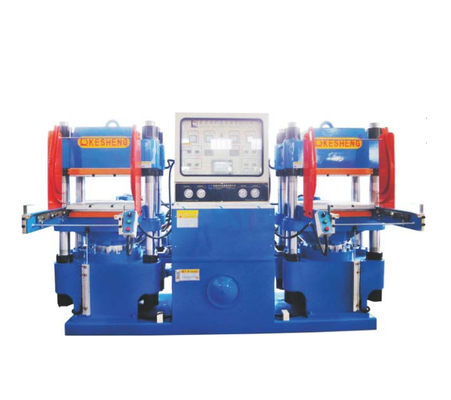

Factory O Ring Rubber Gasket Making Machine Plate Press Vulcanizing Machine Hydraulic Molding Machine

1.0 piece
MOQ
Factory O Ring Rubber Gasket Making Machine Plate Press Vulcanizing Machine Hydraulic Molding Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Warranty: 1 Year
Weight (KG): 7000
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Machine
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor, Pump
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Home Use, Food Shop, Construction works , Food & Beverage Shops, Other
Showroom Location: Egypt, Turkey, United States, Italy, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Thailand, South Korea, Sri Lanka, South Africa, Malaysia, Australia
HMI Touch Screen: Taiwan Panel Master
Clamping force: 250T
Stroke: 250mm
Heating Plate Size: 650*600mm
Main Sylinder Diameter: 400mm
Horse Power: 10x2HP
Electrical Power: 34kw
Type of mold opening: Track mold-open
Machine size: 3200*2700*2500mm
Certificate: CE, ISO9000, ISO14000
Основная информация
Сертификация: CE, ISO9000, ISO14000
Оплата и доставка Условия
Packaging Details: Naked Pack / Wooden Case/Customer Request
Характер продукции
Product Description
Rubber products, band, seals, gaskets making machine, double working stations with 2 pumps, full automatic, high pricision, fast speed, 2 layers mold lift-up hydraulic molding machine, High-precision automactic fast-speed track-style hydraulic molding machine

Machine main feature:
1. Track mold, mold lift angle of up to 90 degrees to facilitate personnel to opearate, suitable for 2-layers mold;
2. Machine simple and fast, easy to work in with mold, quick adjustment, easy to repair and maintenance;
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously;
4. With adjustable slow speed of mold features to suit different types of modules;
5. With proofread slow speed of mold function, proofread mold more accurate, more secure.
 Applicable products:
  • Industrial rubber parts, auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products.

Main parts instruction:
No. Part name Brand / Specification Remarks
1 Motor Taiwan Tatung / Dongguan Motor Large power, quiet and silent
2 Hydraulic oil Pump Japan SCENERY / HIGH-TECH Collective type circuit system
3 PLC Japan MITSUBISHI Independent writing, easy to poerate
4 Touch Screen Taiwan Panel Master Can be seen and operated clearly and conveniently
5 Heating pipe Taiwan brand Nickel-chromium alloy wire, never rust
6 Oil seal Japan NOK Wear-resistant,durable,no leakage
7 Solenoid valve Taiwan Vitory / Taiwan 7 Ocean Fast switching operation,long service life
8 All kinds of electrical accessories Japan Fuji Performance and stability
9 Temperature control system Japan Omron Using PID correction, make the temperature evenly, the error value
at ± 3 ºC
10 Pressure sensor Denmark TRAFAG / PRESICE Accuracy,easy to use
11 Heating control system Taiwan Yang Ming Make the temperature evenly, the error value at ± 3 ºC
12 Casting FCD50 Ductile Iron Aging passivation,high tensile strength
13 Column / Pillar Medium carbon steel Hardness up to HRC55-58
14 Work plate Taiwan brand 45 # high carbon steel, grinding, surface nitriding process, hardness HRC50-55
15 Middle body base Umbrella shape design Make the machine pressure evenly, no leakage of material, no bubbles
16 Vacuum pump Germany Ristschle / Rufus Pump quickly, can reach 760 mm Hg within 5 seconds

Machine Specification and parameter:
Model 100Ton 150Ton 200Ton 250Ton 300Ton 350Ton 400Ton 450Ton
Clamping force(Ton) 100 150 200 250 300 350 400 450
Stroke(mm) 250 250 250 250 300 300 300 300
Heating plate size(mm) 400x400 450x460 560x560 600x650 650x650 750x700 850x850 1000x1000
Main cylinder diameter(mm) 250 300 355 400 450 475 500 560
Horse power(HP) 5x2 5x2 10x2 10x2 10x2 15x2 15x2 15x2
Electrical power(KW) 12 17 22 34 34 43 48 72
Gross weight(KG) 4500 5500 7000 9000 11000 15000 17500 21500
Machine size(L*W*H mm) 2360x1650x1850 2650x2000x2000 2930x2350x2100 3200x2700x2500 3460x2630x2500 3650x2600x2610 3750x2700x2800 4200x3300x3300

Characteristic of rubber products processing molding machine:
1. Scientific and reasonable design, more strong and stable.
2. Use high precision and supper quality machine parts.
3. Unique temperature control system, keep the work plate temperature uniform.
4. Convenient operation control system, high efficient hydraulic system, strong and multi-function.

Our machine advantage:
1. Integrally cast molding of machine body, compact structure, the longest useful life.
2. Adopt integrated oil-circle design, high efficient and more stable, low failure rate, energy saving.
3. Japan Mitsubishi operation control system, independent programming; Taiwan Panel Master HMI (touch screen), can be learned and used easily.
4. You can switch in full-automatic and semi-automatic, make the work process simple, saving labor costs.
Certifications



Company Information

Any inquiry please feel free to contact with us, thank you for your attantion.

Our Services

Packaging & Shipping

Naked Pack / Wooden Case / Customer Request

FAQ

1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(35.00%),North America(20.00%),Africa(10.00%).

It is a professional manufacturer of silicone rubber machinery and equipment, integrating product development, design, production, sales and after-sales service as one of the high-tech enterprises.
The company fully implements ISO9001 quality management system and ERP management system, and its products have passed CE certification and are in line with EU standards.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
hydraulic molding machine,press molding machine,vacuum molding machine,injection molding machine



4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDU;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Japanese,Russian,Korean



5. Which model should we choose?
Whe have many models for your choice. Bofore suitable model is recommended, please tell us the application, materials, output and pressure you want.



6. Can we have customized model?
Yes. We can make the customized machine according to your actual requirements.



7. Do I need to know technical skill to operate this machine?
No. This machine has no professional requirements for the operator.
However, we provide technical instruction for your backup.



8. What should we do if there are some problems with the machine?
You can refores to the Operate Instruction or cantact us for online instruction.
Also, our engineers are available to service overseas.



9. What is the lead time?
Within a month



10. How about the package?
We have wooden case to protect the machine from damage during the long-distance delivery.



11. How should Ipay for you if I place this order?
Generally, TT, 30% deposit 70% before shipment.
